Key Features:

Image Sensor:

• Type:
  • 1/2.7 inch high-quality CMOS sensor.
• Effective Pixels:
  • 2 million pixels in a 16:9 aspect ratio for high-definition video quality.

Video Output:

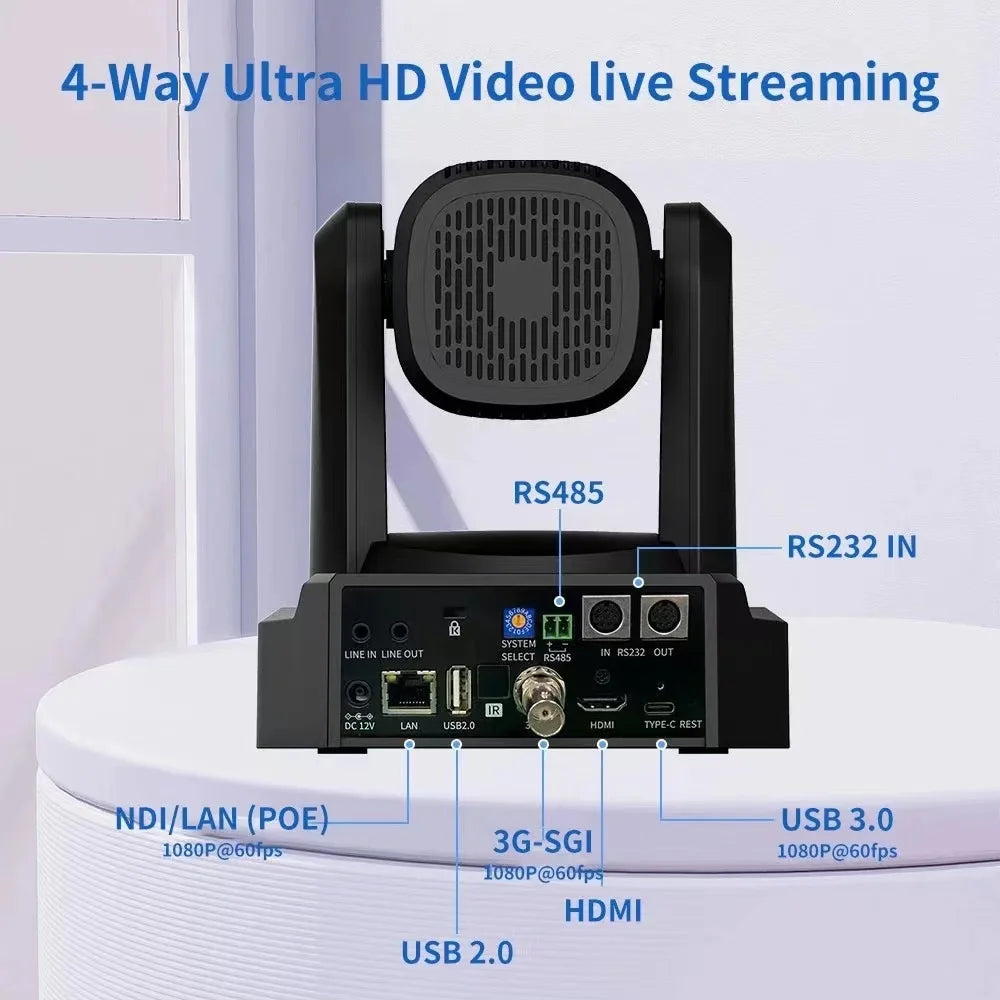

• Connections:

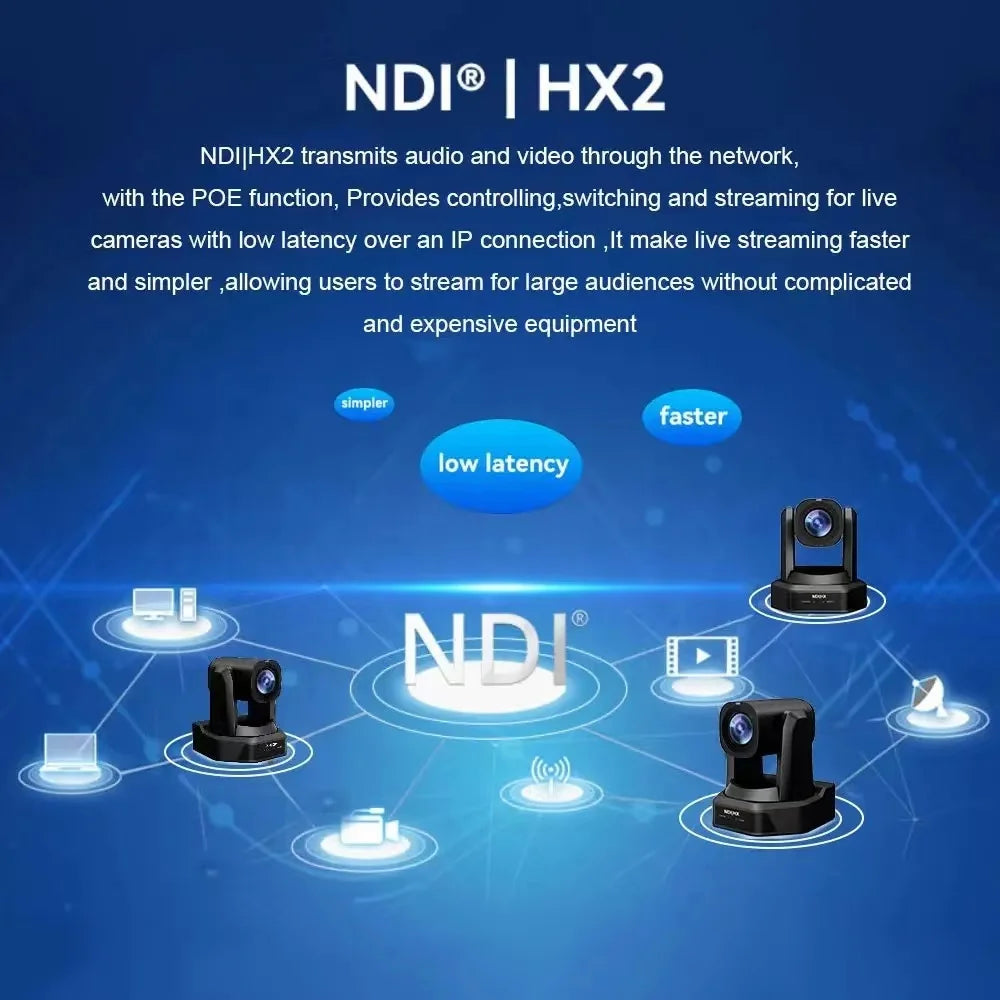

  • SDI, LAN, HDMI, USB 3.0, USB 2.0, and NDI POE.
• Ai Auto Tracking:
  • Automatically tracks subjects for seamless live streaming.

Optical Zoom:

• Zoom Capability:
  • 20X optical zoom for detailed close-ups.

Viewing Angle:

• Angles:
  • Narrow angle of 3.3° to a wide angle of 80° for versatile shooting.

Aperture:

• Coefficient:
  • f/1.6 – f/3.5, allowing for flexible lighting conditions.

Minimum Illumination:

• Low Light Performance:
  • 0.5 Lux (f/1.8, AGC on) for enhanced low-light capabilities.

Digital Noise Reduction:

• Types:
  • 2D & 3D digital noise reduction for clearer images.

Image Stream:

• Output:
  • Double stream output for simultaneous video feeds.

Video Compression Formats:

• Formats Supported:
  • H.265 and H.264 for efficient streaming and storage.

Audio Compression Formats:

• Supported Formats:
  • AAC, MP3, g.711a for quality audio transmission.

Network Interface:

• Port Type:
  • 100m network port (10/100Base-TX).
• Wi-Fi:
  • Optional 5G Wi-Fi for wireless connectivity.

Network Protocols:

• Supported Protocols:
  • RTSP, RTMP, ONVIF, Vmix, GB/T28181.
• Remote Capabilities:
  • Supports remote upgrade, restart, and reset.

Control Interfaces:

• RS232 and RS485 Interface:
  • Control Protocols: VISCA, PELCO-D, PELCO-P.
  • Baud Rates: 115200, 9600, 4800, 2400 for flexible integration.

Power Interface:

• Socket Type:
  • HEC3800 power socket (DC12V).

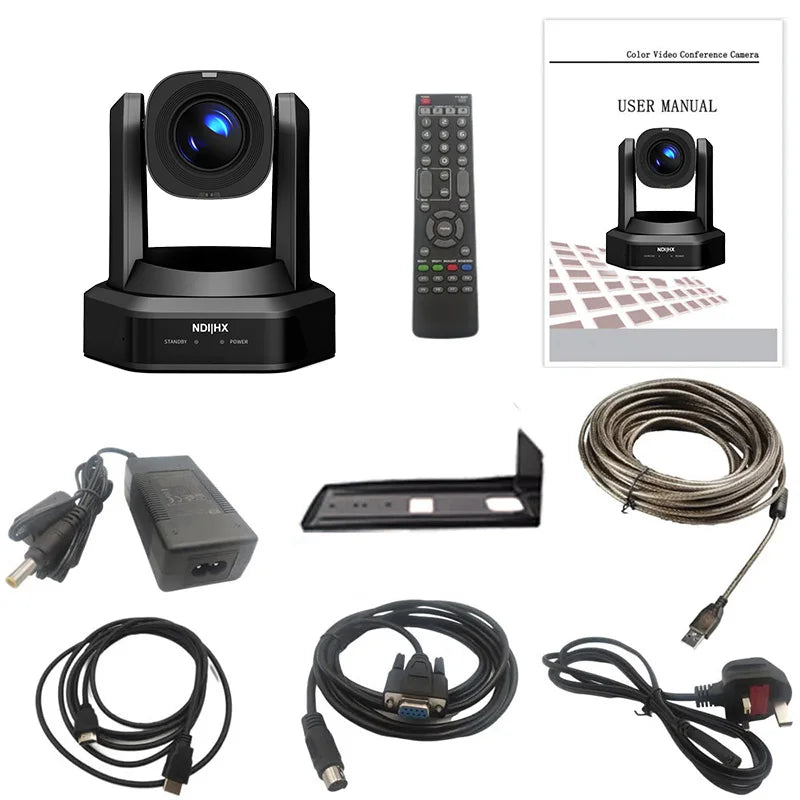

• Power Adapter:
  • Input: AC110V-AC220V, Output: DC12V/1.5A.

Input Voltage:

• Voltage Range:
  • DC12V ± 10%.

Power Consumption:

• Maximum:
  • 12W for efficient energy usage.

Rotation Capabilities:

• Horizontal Rotation:
  • -170 degrees to +170 degrees.
• Pitch Rotation:
  • -30 degrees to +90 degrees.
• Control Speeds:
  • Horizontal control speed: 0.1° – 60°/s.
  • Pitch control speed: 0.1° – 30°/s.

Conclusion:

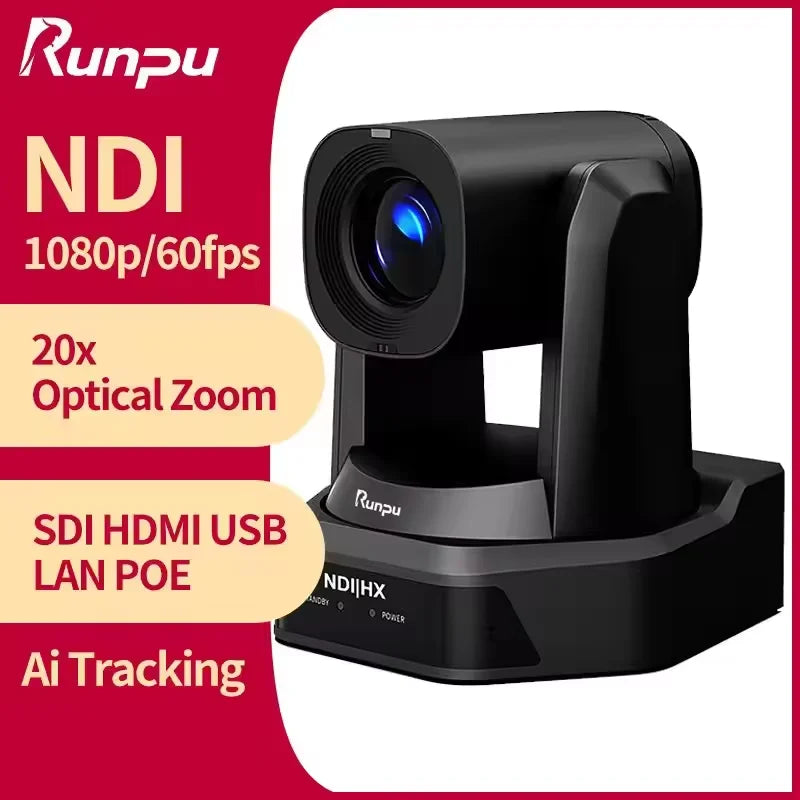

The Ai Auto Tracking NDI 20X PTZ Camera is an advanced solution for live streaming and video production. Its impressive optical zoom, multiple connectivity options, and AI tracking capabilities make it ideal for various applications, including conferences, events, and broadcasting. With robust control protocols, remote management features, and low-light performance, this camera is designed to meet the needs of professional videographers and content creators.
