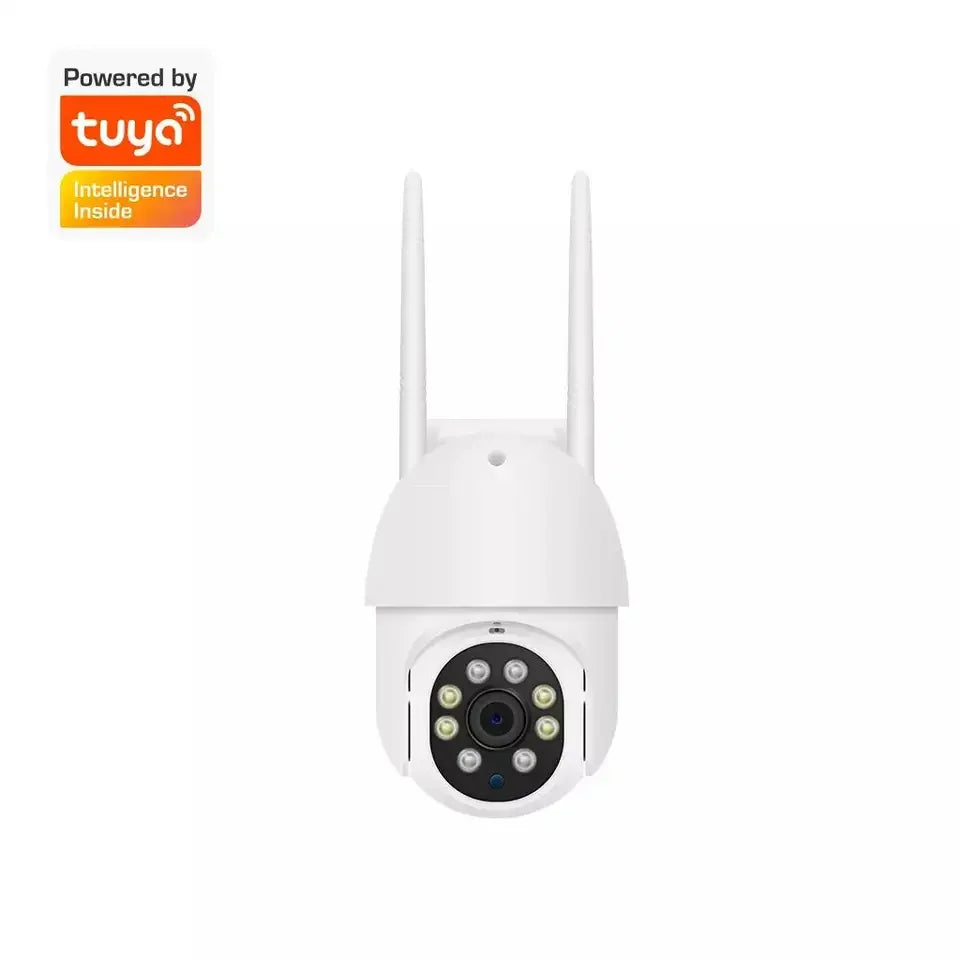

WiFi PTZ Cameras

Specifications:

• Resolution: 3MP HD Wireless PTZ Security Cameras
• Image Sensor: 1/2.9" 3M Pixel CMOS
• Min. Illumination:
  • 0.1 Lux @ F1.2 (color mode)
  • 0.05 Lux @ F1.2 (B&W mode)
  • 0 Lux (IR LED on)
• S/N Ratio: ≥39dB
• Electronic Shutter: 1/5 - 1/20,000s, supports slow shutter
• Day & Night Mode: Auto ICR filter, fixed black & white, fixed color, external control
• Gain Control: Auto/manual
• White Balance: Auto, indoor, outdoor, sodium lamp mode, manual
• Wide Dynamic Range: Supports digital wide dynamic
• Digital Noise Reduction: Supports DNR, 3DNR
• Video Compression: H.265 Main profile / H.264 Main profile / M-JPEG
• Audio: G711 compression, PCM; 1CH input: linear, impedance 1KΩ; 1CH output: linear, impedance 600Ω
• Max. Resolution: 1920x1080 @ 20fps
• Video Resolutions:
  • Main stream: 1920x1080, 1280x720, 720x576, 640x480
  • Sub-stream: 640x480, 480x360, 352x288, 176x144
• Output Bit Rate: Constant bit rate (CBR) or variable bit rate (VBR), 32K~10M
• Motion Detection: Supports 4 motion detection zones
• Private Zone: Supports 4 customized zones
• PT Control: Pan 320°, tilt 90°, supports 254 preset points
• Network Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DNS
• Wireless Spectrum: 2.4G
• Wireless Standard: IEEE802.11b/g/n
• Wireless Transmission Distance:
  • Up to 200M without barriers
  • Over 50M through walls
• Power Supply: 12VDC @ 1A
• Protection Grade: IP64, TVS 3000V thunderproof, electrical surge proof, voltage transient proof
• Size: 160×90×150mm
• Weight: ≤1kg
• Working Temperature: -30°C to 50°C
• Working Humidity: 0%-90% RH (no condensation)

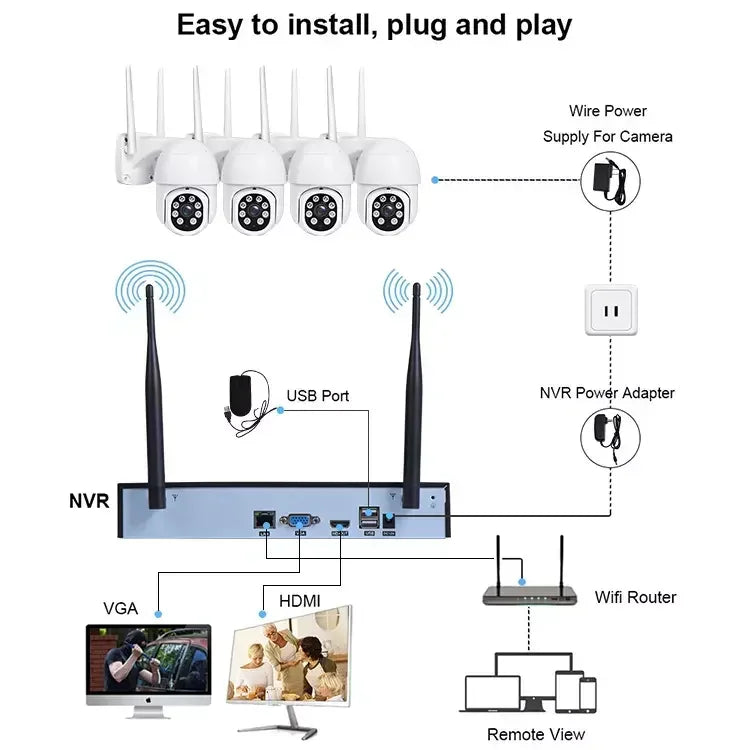

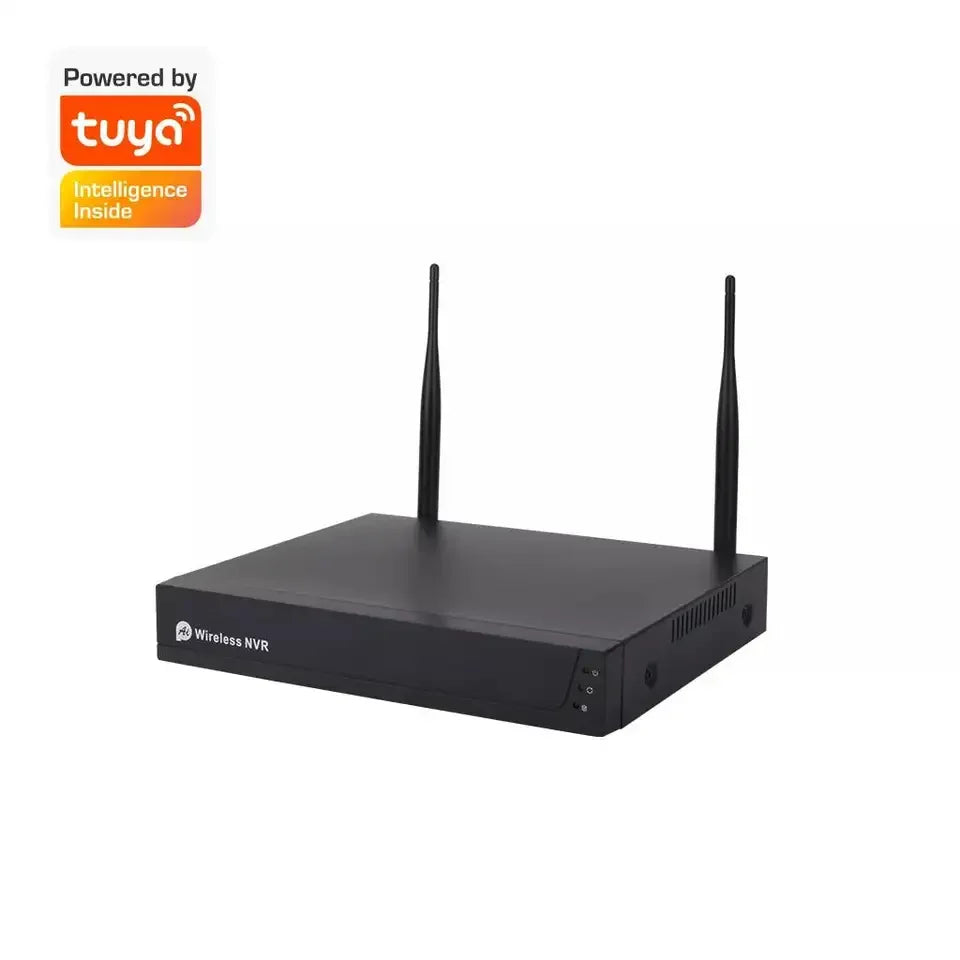

Wireless NVR Kit

Model: 4CH WIFI 3MP HD NVR

System Specifications:

• Main Processor: Industrial-grade embedded microcontroller
• Operating System: Embedded Linux

Video Specifications:

• Image Decode Standard: H.265 Main Profile Level 4.2
• Video Output: 1080P @ 60fps
• Video Input: 43MP / 41080P / 4*960P

Audio Specifications:

• Decode Standard: G.711
• Voice Intercom: Not available

Recording & Playback:

• Recording Method: Manual, motion detection, timing, alarm recording
• Recording Playback: 4CH 960P or 4CH 1080P or 4CH 3MP synchronous playback
• Playback Speed: 1/4, 1/2, 2X, 4X
• Storage & Backup:
  • Occupied Space/CH: 3MP = 30G/day
  • Backup Method: Supports HD storage and USB backup

Network Specifications:

• Network Protocol: TCP/IP, HTTP, DHCP, UDP, RTP, RTSP, FTP, NTP, P2P
• Mobile App: Supports Tuya app
• Browser Support: IE browser

Wireless Specifications:

• Wireless Module: Built-in professional controlled wireless receiving module
• Antenna: 2PCS 5dB antenna
• Transmission Distance: Up to 300M without barriers

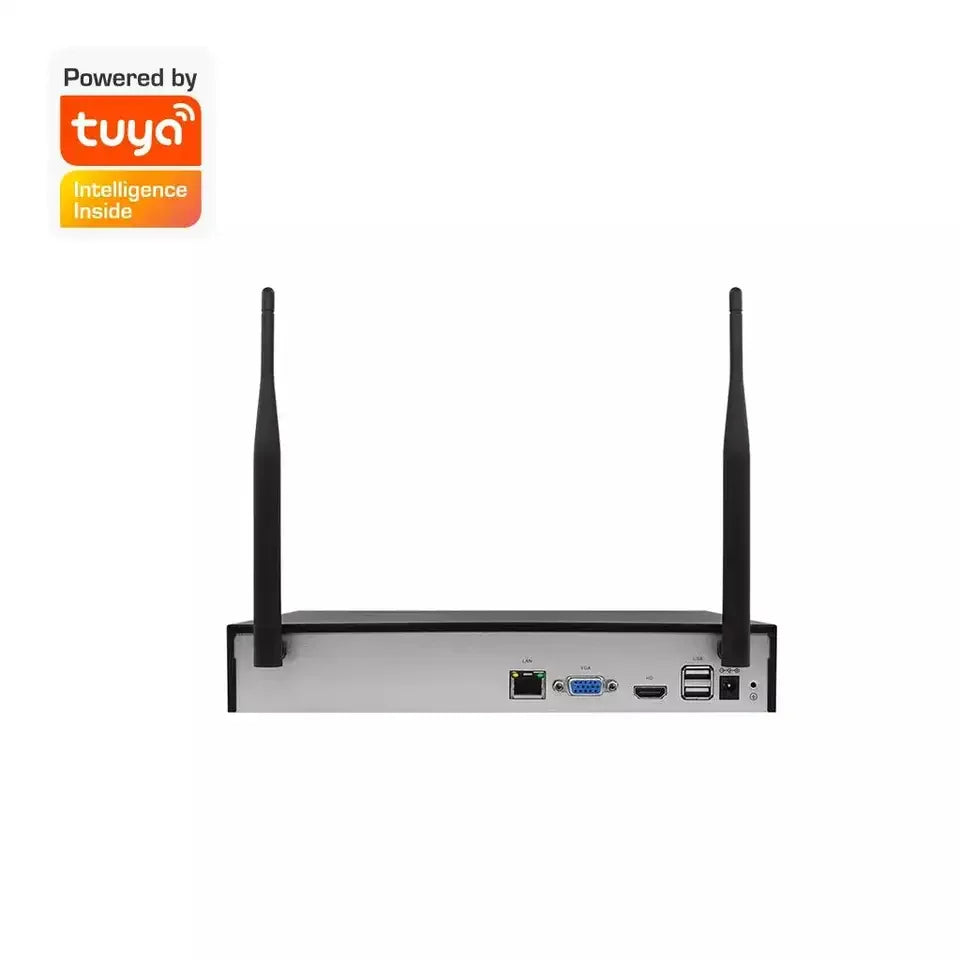

Interface:

• Video Input: 4CH 3MP network input
• Video Output: 1CH VGA output, 1CH HDMI output
• Network Interface: RJ45 10M/100Mbps adaptable Ethernet interface
• USB Ports: 2 USB 2.0 interfaces
• HDD Support: Internal support for 1 SATA HDD (up to 6T)

Others:

• Power Supply: DC +12V / 3A
• Power Consumption: 3W (without HDD and PoE)
• Working Temperature: -10℃ to +55℃
• Working Humidity: 10% to 90%
